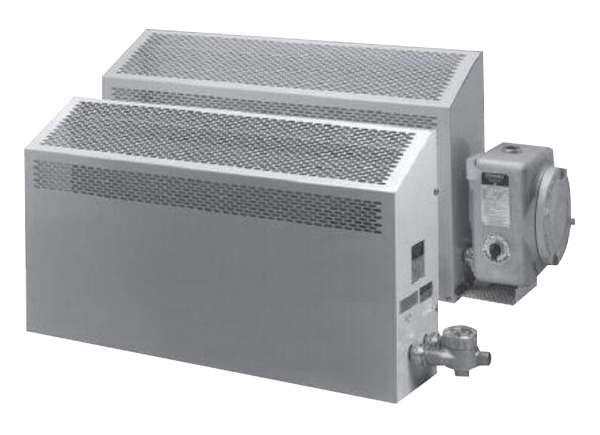

DWBDR...C Series Ex convection heater is designed and manufactured to provide a rugged,corrosion-resistant heat source for areas where volatile flammable liquids, gases or vapors are present.
All our heaters are designed and manufactured according to customer's requirements and operating conditions. The material for the electrical connection box is carbon steel painted or stainless steel. Heating elements material is stainless steel.
A high thermal efficiency is achieved by a specific surface load Pa which is optimized according to the operating conditions. The temperature monitoring to the protection of the heater and compliance with the temperature class are carried out by means of temperature sensors, adjusted to the heating elements, and electro-mechanical switches or electronic monitoring equipment.
Service hotline：
0523-88317000 88318288
-

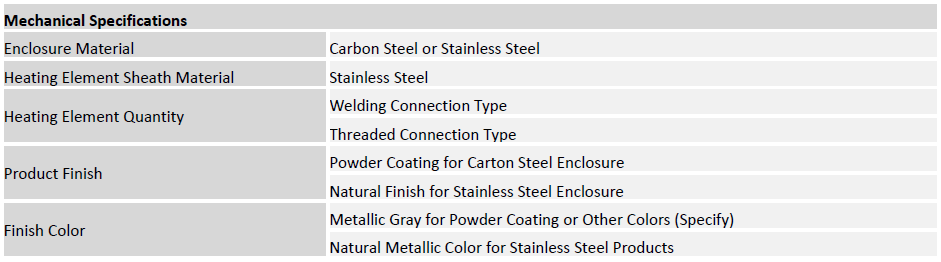

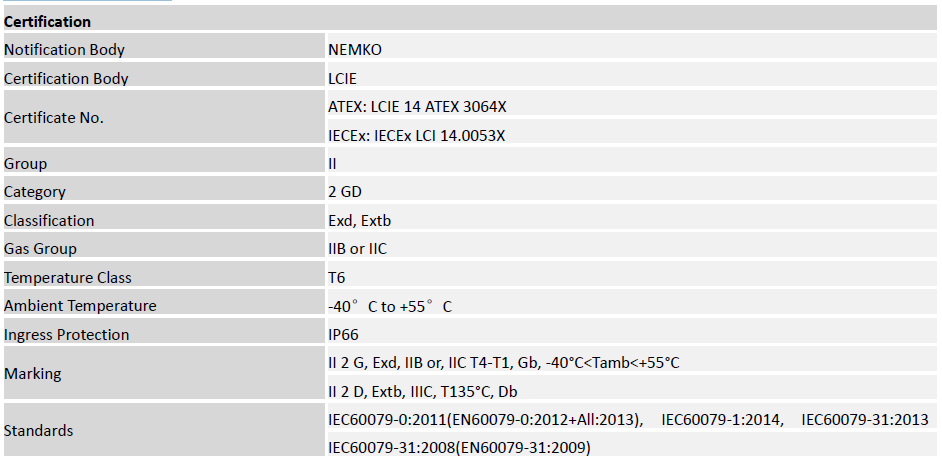

Technical parameter
-

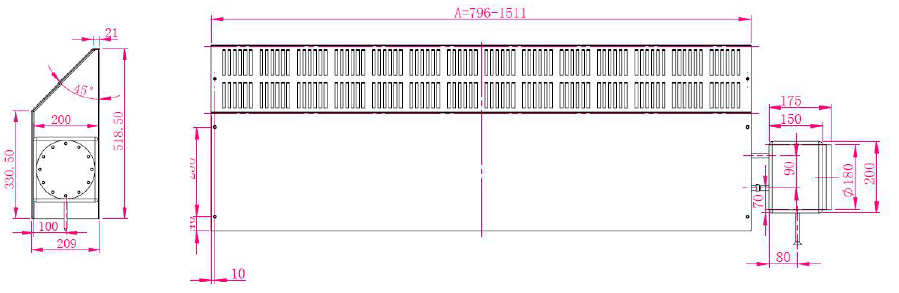

Dimension
-
Order Specifications Table
Please refer to the below table for ordering. If you need more information, please contact our sales representative for assistance.
|
